Profiles & Specifications
The aluminium rainwater goods manufactured by Flashworx, will be of seamless corrosion resistant type 3004 grade, pre-painted aluminium. All work will be executed in accordance with the manufacturer’s instructions.
Material
Aluminium alloy is available in:
0.6mm
0.8mm
0.9mm
Sizes & Dimensions

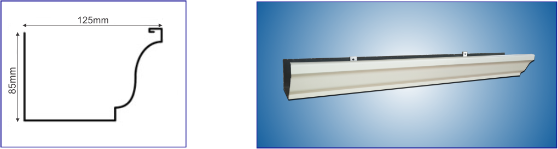

125 x 85 Domestic Ogee gutter
Gutter to be role formed on site from seamless pre- painted aluminium coil to exact measurement. To be hung by 20mm x 2.5mm internal aluminium brackets at 600mm centres, to be secured with a class three tex screws to the facia board. Mitre joined on the corners and end caps to be crimped on the ends. All to be sealed with approved sealer.
Rainwater pipes for 125 x 85mm gutter

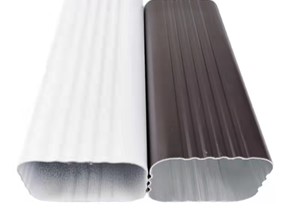

75 x 50 Rectangular fluted aluminium pipe.
75 x 50 Rectangular PVC

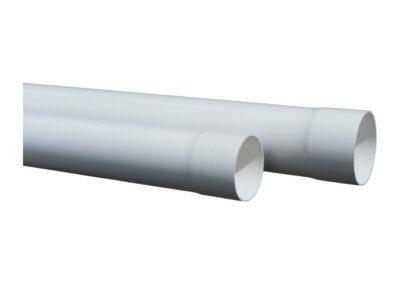

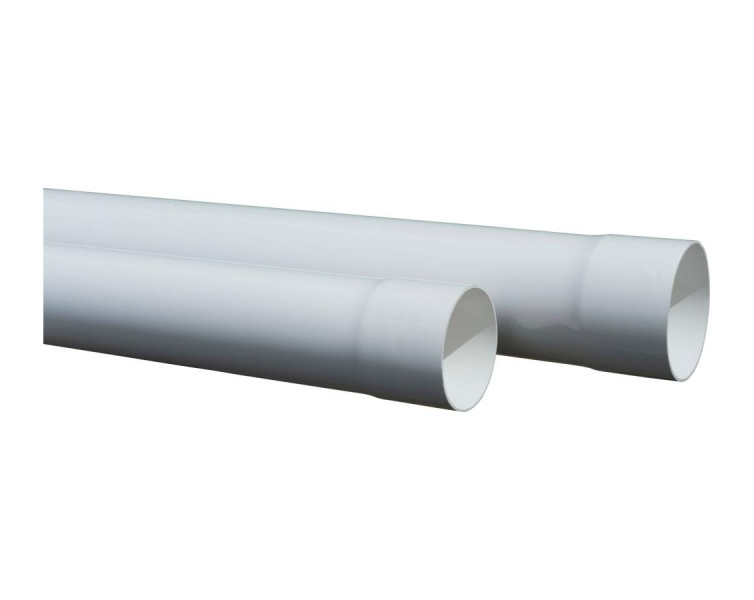

80mm Round PVC
*Gutter capacity for 125 x 85mm gutter – 75 m² roof per outlet.

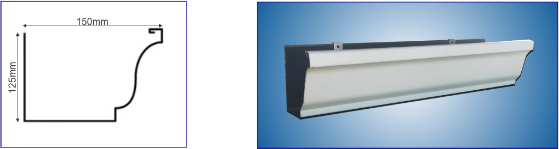

150 x 125 Domestic Ogee gutter
Gutter to be role formed on site from seamless pre- painted aluminium coil to exact measurement. To be hung by 20mm x 2.5mm internal aluminium brackets at 600mm centres, to be secured with a class three tex screws to the facia board. Mitre joined on the corners and end caps to be crimped on the ends. All to be sealed with approved sealer.
Rainwater pipes for 150 x 125mm gutter
100 x 75 Rectangular fluted aluminium pipe.
110mm Round PVC
*Gutter capacity for 150 x 125mm gutter – 150 m² roof per outlet.
150 x 150 Domestic Ogee gutter
Gutter to be role formed on site from seamless pre- painted aluminium coil to exact measurement. To be hung by 20mm x 2.5mm internal aluminium brackets at 500mm centres, to be secured with a class three tex screws to the facia board.
Rainwater pipes for 150 x 150mm gutter
100 x 75 Rectangular fluted aluminium pipe.
110mm Round PVC
160mm Round PVC
*Gutter capacity for 150 x 150mm gutter – 150 m² roof per outlet and up to 200 m² roof with a 160mm diameter pipe.
